Features

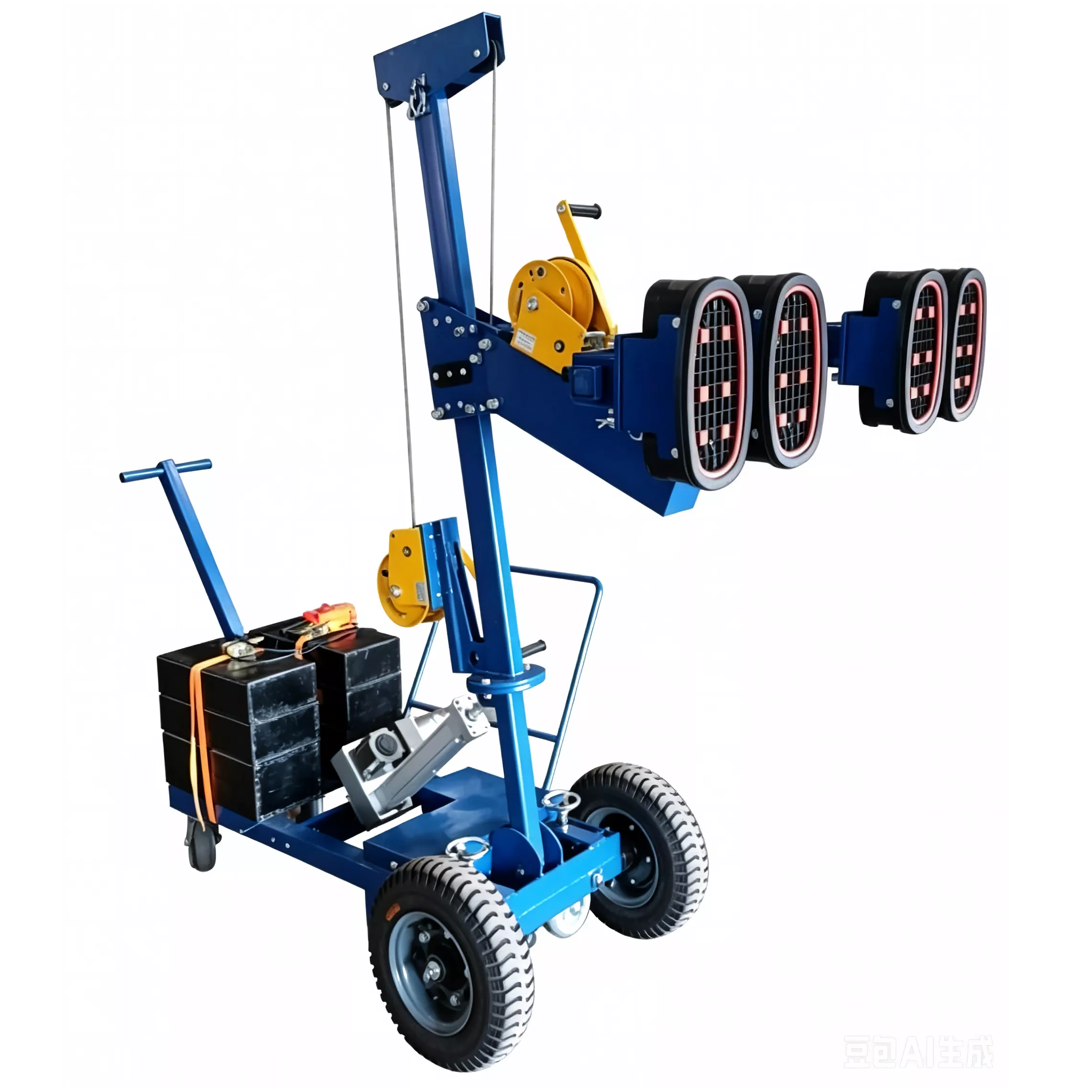

This Mini trolley vacuum lifter is designed for lifting and moving the flat surface items,such as glass,metal,stone and wood etc.The machine is controled by battery for up&down the vacuum frame.The vacuum lifter is vertica-horizontal tilting from 0-90° and horizontal rotating from 0-360° manually.
Technical Parameters |
| Model | BN-280 |
| Rated Load Capacity | 200 kgs |
| Wheel Dimension | Φ400*110mm |
| Suction Cup Size | 297*181mm |
| Overall Outer Dimension | 2500*700*1620mm |
| Suction Frame Lifting Stroke | 0-1400mm |
| Motor Power | 250W |
| Lateral Displacement Range | ±50mm |
| Tilting Angle | 0-90° |
