Features

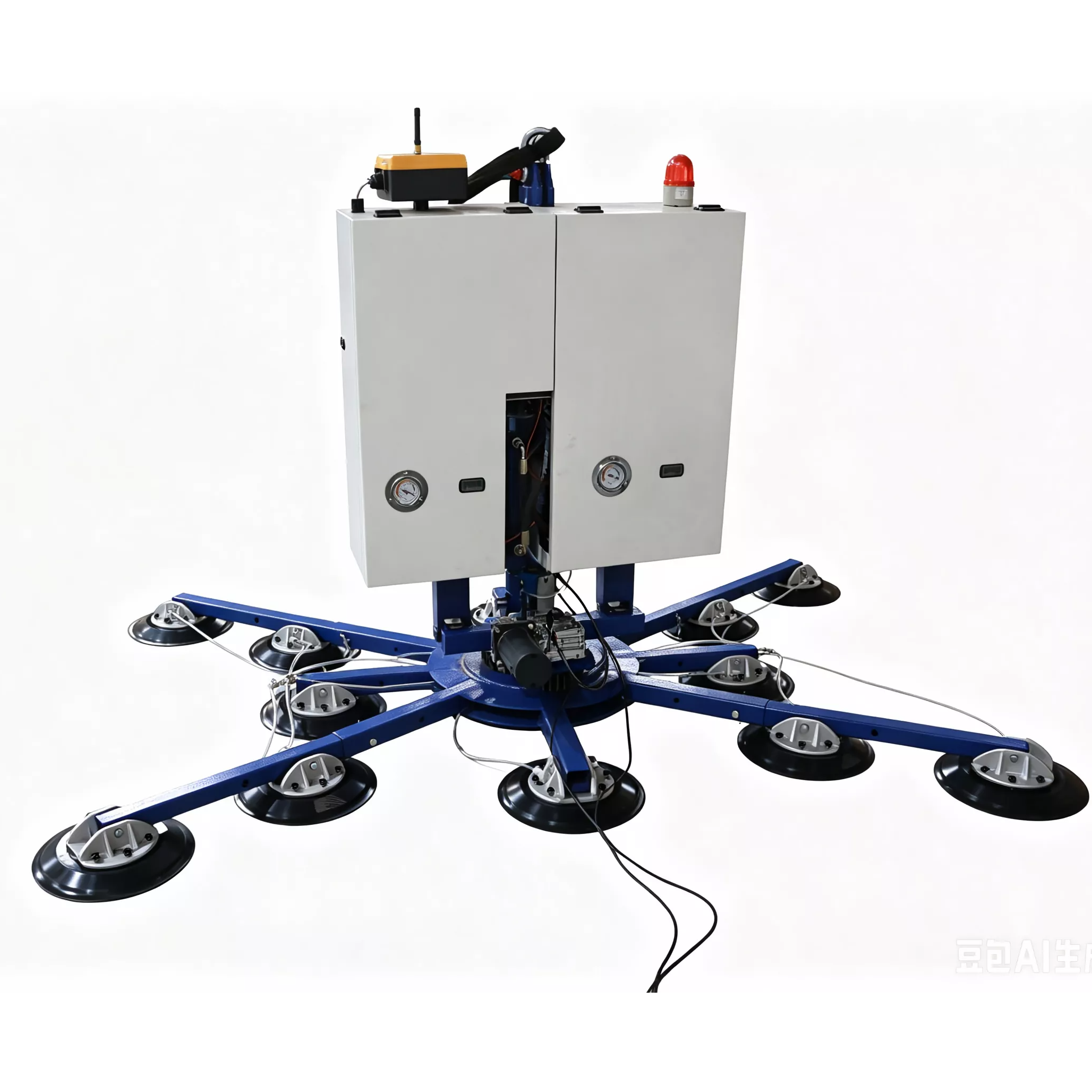

This battery-powered vacuum lifter is designed for stable and safe lifting and handling of flat surfaces, such as glass, stone and metal sheets.
The vacuum lifter features an integrated structure with a maximum horizontal working load of 1500 kgs. It can be hydraulically tilted from 0° to 90° and electrically rotated horizontally 0–360°.
The lifter is fitted with 12 vacuum pads, each with a diameter of 300 mm. Four pads are fixed on the main frame and eight are installed on extendable arms, enabling compatibility with panels of various sizes.
Technical Parameters |
| Model | BN-1000 |
| Horizontal Capacity | 1500kgs |
| Vertical Capacity | 900kgs |
| Vacuum Diameter/Quantity | Ø300mm×12pcs |
| Sucking Spread | Max:2500×1600mm,Min:1200×1200mm |
| Electric powered rotation degree | 0-360° |
| Hydraulic powered tilting degree | 0-90° |
| Two Independent Controlled System | Yes |
| Audible&Visual low vacuum warning devices | Yes |
| Net Weight | 251.5kgs |
